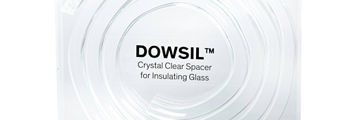

DOWSIL™ Crystal Clear Spacer
Silicone spacers from Dow provide high clarity and flexibility for the assembly of insulating glass, glass doors or other glass panels.
Uses:
- Insulating glass doors for commercial refrigeration
- Glass panels
- Glass connections
Benefits:
- High clarity for enhanced glass edge aesthetics
- Flexible spacer for realizing various IG shapes
- Chemical adhesion for enhanced durability
- High flexibility for lower risk of glass breakage
- No tape adhesive required - enhanced productivity
- Ready to use and easy to apply
- Excellent resistance UV, temperature variation and ozone
- Very low thermal conductivity suitable for energy efficient design
Properties
These values are not intended for use in preparing specifications.
Typical Properties
- Appearance Yes No Crystal Clear
- Chemistry Yes No Neutral
- Color Yes No Crystal clear
- Substrate Yes No Non-porous
- Where Used Yes No Factory
DOWSIL™ Crystal Clear Spacer is a ready to use silicone spacer for the assembly of air-filled insulating glass units where transparency is desired. It was developed to address growing industry trends for full vision insulating glass units (IGU’s).
DOWSIL™ Crystal Clear Spacer is a pre-formed material that builds chemical adhesion to glass within a few minutes after application. It is easy to install and eliminates the need for tape adhesives and therefore offers enhanced IGU productivity. Its flexibility allows for the manufacturing of rectangular and curved IGU’s. An additional feature is the low thermal conductivity of the silicone spacer which can be beneficial in energy efficient designs. Spacers dimensions can be tailored to specific design needs.
DOWSIL™ Crystal Clear Spacer is perfectly suited for insulating glass in glass doors designed for vertical commercial refrigerators favored by shops and supermarkets, where full vision and high light transmission at the glass edge can enhance the presentation of goods.
DOWSIL™ Crystal Clear Spacer is compatible with all DOWSIL™ Insulating Glass Silicone Secondary Sealants and new DOWSIL™ 335 Butyl Sealant for primary insulating glass seals.
For more detailed information and step-by-step application instructions, please refer to the product technical datasheet, spacer application guide or contact your local Dow representative.
DOWSIL™ Crystal Clear Spacer
Find out how silicone spacers enhance the design possibilities and clarity of insulating glass doors for commercial refrigeration, glass doors or other glass panels.
Maximizing façade transparency with crystal clear spacers Presented by Valérie Hayez
This presentation, given at Glass Performance Days 2019, will help you discover how clear silicone spacers could be used in transparent insulating glass units.
